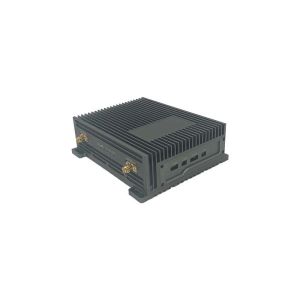

Vehicle 900 Mhz Radio Modem Long Range Customized

  • 1
  • 2
  • 3

Model Number : DDL2x2-1400

Place of Origin : Guangdong, China

Brand Name : WDS/Sinosun

Supply Ability : 1000 Set/Sets per Month

Price : $1,450.00/sets >=1 sets

Type : Vehicle/Shipboard

Contact Now

Vehicle/Shipboard Radio with Advanced Features and Enhanced Communication Efficienc
Product Overview

DDL Vehicle/Shipboard Radio
The new DDL series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. DDL series based on SDR software defined radio platform with 2X2 MIMO, It adopts Beamforming, Maximal Ratio Combining (MRC), Maximal Likelihood(ML) algorithm, low density parity check (LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming. DDL series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.
Vehicle 900 Mhz Radio Modem Long Range Customized
Product Paramenters
Wireless Specifications
Frequency Range
320-450/450-550/550-700MHz,1000-1300/1300-1500MHz, 1.8-2.2/2.2-2.5GHz,4.4-5.0/5.0-6.0GHz,70M-6GHz Customized
Channel Bandwidth
1.25/2.5/5/10MHz Adjustable
Modulation Mode
COFDM, DSSS-CCK/BPSK/QPSK/16QAM/64QAM (Adaptive)
Throughput
70Mbps@10MHz/25Mbps@5MHz/10Mbps@2.5MHz/4Mbps@1.25MHz
Sensitivity
-102dBm@5MHz
Transmission Distance (line-of-sight)
over 100 km (2Watts x 2),over 150 km (10Watts x 2), over 200 km (20Watts x 2)
Transmission Power
2Watts x2
10Watts x2/20Watts x2
Networking Capabilities
Communication Mode
Point-to-point, point-to-multipoint and multipoint-to-multipoint, Reapter
Network Topology
Centerless of no-master/slave to MPtoMP
Wireless Protocol
HTDMA
Network Protocol
IPv6,QoS,DNS,HTTPS,IP,ICMP,NTP,DHCP,VLAN
Encryption
DES56/AES128/AES256
Anti-jamming
Intelligent frequency selection/Autonomous frequency hopping
Mobility
Support movement speed greater than 200 km/h
Transmission Delay
Less than 10 ms
System Parameters
Interface
Network port (IP/WiFi), Serial port (232/485/422/TTL,Sbus/USB/Bluetooth),Audio port (MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G LTE/Satellite/Fibe
Video Interface
IP,HDMI/SDI,CVBS
Local/Remote Management
PC terminal Web browsing, Mobile APP: topology, node and link status, distance monitoring, whole network parameter configuration, software upgrade and other functions
System Upgrade
Support one-click upgrade, remote upgrade
Positioning Function
GPS/BDS
Power Supply
12-36VDC,2Watts×2
14.8-36VDC,10Watts×2
18-36VDC,20Watts×2
Power Consumption
Operation 1-2A/Standby 0.5-0.7A@12V,2Watts×2
Module/Airborne/Handheld Radio Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2
6-10A/Standby 0.7-0.9A@20V,20Watts×2
Physical Properties
Operating Temperature
-40℃~ 80℃
Protection Level
IP65,IP66/IP67(Customized)
Size/Weight
11.9x10.6x3.9cm/518g(1Watts×2/2Watts×2 Vehicle Radio) 18.3x15.4x6.3cm/1.56kg(10Watts×2/20Watts×2 Vehicle Radio)
Price(The specifications are different, the price is different)
2Watts×2 Vehicle Radio
$1450/unit
10Watts×2 Vehicle Radio
$2450/unit
Performance:
400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP. Low power consumption. Tiny volume, lightweight structure, body building for UAV.
Advantages:
70Mbps high-speed, long-distance transmission
Intelligent frequency selection/autonomous frequencyhopping anti-jamming
Point-to-point,Point-to-multipoint,Multipoint-to-multipoint
Multiple network + multiple serial
Compact/harsh environment applications
Hardware Interfaces
Vehicle 900 Mhz Radio Modem Long Range Customized
1:RF ANTENNA(SMA Female)
2:Link Status Indicator
3:RJ45
4.COM1
5.DC12V
6.COM2
Vehicle 900 Mhz Radio Modem Long Range Customized
1:Power/RS485/RS422
2:RS232
3:Ethernet
4:Link Status Indicator
5:RF Antenna [TNC Female]
6:Power Switch
Company Profile
Vehicle 900 Mhz Radio Modem Long Range Customized
Shenzhen Sinosun Technology Co.
---Leading Manufacturer of Industrial Wireless Data Transmission
Rich Products Available
Leading Performance
Professional and Efficient Service
www.sinosun.cn
Product packaging
Vehicle 900 Mhz Radio Modem Long Range Customized
Vehicle 900 Mhz Radio Modem Long Range Customized
